LUFFING JIB CRANE OFFERS FAST LIFTING SPEEDS 1

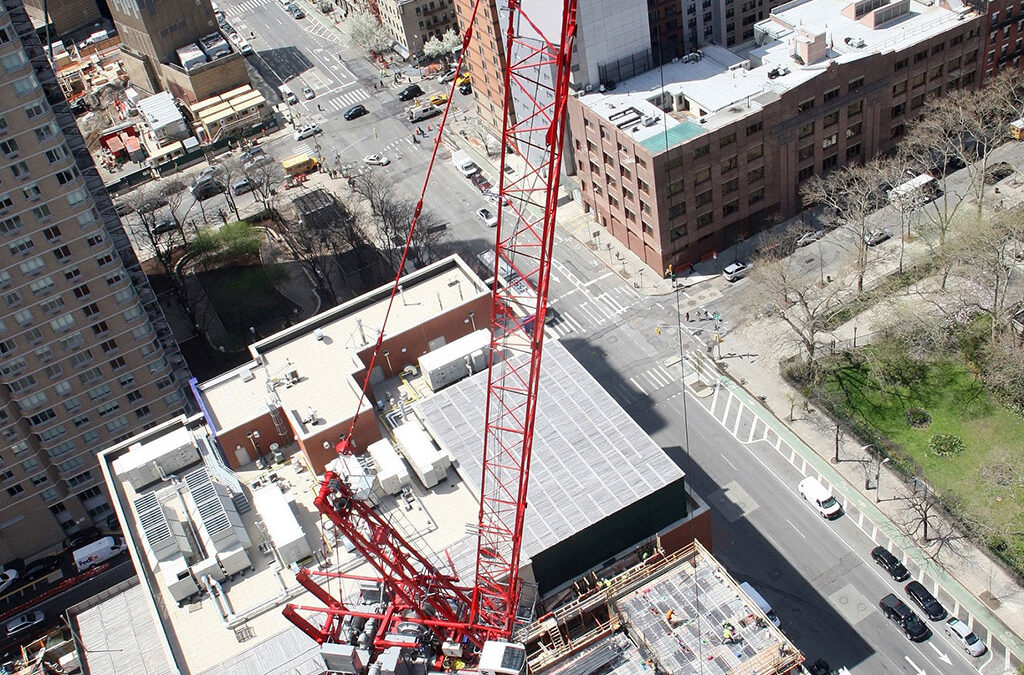

The Potain MR 418 is equipped with full frequency-controlled mechanisms for precision control.

The Potain MR 418 luffing jib cranes, which is equipped with full frequency-controlled mechanisms for precision control, offers fast lifting speeds. Maximum capacity for the crane is 24 t and the maximum jib length is 60 metres.

Available from Crane & Hoist Equipment SA, the sub-Saharan distributor of the world leading Potain brand of tower crane, it boasts several advantages. Among these is that this extremely compact crane is quick to assemble, quick to commission and capable of extremely fast lifting speeds on high rise job sites.

The crane delivers its best performance when fitted with the optional 270 LVF 120 hoist which offers industry leading lifting capability and is perfect for high rise buildings, including super tall structures.

The 200 kW (270 hp) hoist provides 826 metre (m) of rope capacity, which means that in a single-fall configuration a hook path of 413m is possible, while in a two-fall configuration 206 m of vertical reach is possible.

In addition, the winch can reach speeds of up to 254 m/min for better productivity, while the power control function means it can operate off varying power inputs, allowing it to cope with lower power supplies on site.

Customers not requiring the full power of the 270 LVF 120 hoist winch can choose the  150 LVF 120 hoist. This hoist has a drum capacity of 552 m and can produce line speeds of up to 210 m/min. The flexibility of choice with the design means customers can select the optimal configuration for them, ensuring they earn the best possible financial returns for their requirements.

LUFFING JIB CRANE OFFERS FAST LIFTING SPEEDS 2

The Potain MR 418 offers faster lifting speeds.

LUFFING JIB CRANE OFFERS FAST LIFTING SPEEDS 3

Among the advantages of the Potain luffing jib crane is that it is extremely compact crane is quick to assemble, quick to commission and capable of extremely fast lifting speeds on high rise job sites.

But it is not only new mechanisms and better lift capabilities that are likely to appeal to customers. The crane’s user-friendly design has the luffing mechanism and hoist uniquely mounted inside the counter jib while there is also a large, easily accessible service platform behind the cab, giving technicians a single location from which to access all major service points.

Quickly getting the crane into service comes courtesy of a new on-board control system that allows the technician to commission the crane into operation just minutes after assembly is completed. Simple input of the jib length, working height and test load into the crane’s control board allows for a fast and accurate calibration.

In terms of working height, Potain’s intelligent mast system gives the crane enhanced flexibility to cope with the challenges of modern high-rise buildings. The crane can be installed on fixing angles or on various sized chassis of 6 m x 6 m; 8 m x 8 m; and 10 m x 10 m.

For example, a freestanding height of 86 m can be achieved on a 10 m x 10 m chassis when fitted with 40 m of jib. And with its design focus on high-rise applications, the crane needs only three anchorages to reach a working height of 197 m when fitted with 30 m of jib and fixing angle P854A (wind condition FEM 1.001).
